Product Description
PET Bottled Water Production Line:
In the production of PET bottled water, the raw water undergoes a
purification process through the use of a water treatment device
that includes an ozone-containing sterilization device. The treated
water is then prepared for bottling.
The bottling process involves the use of air passage machines that
flush, fill, and cap the bottles. The bottle caps are applied
through an automatic capping machine. Once the bottles are filled
and capped, they move on to the next station, which includes a
bottle dryer, printing machine, lamp inspection, and buffer system
of solid bottle conveying. Following these steps, the bottles are
charged by a bottle dryer membrane charging machine and are ready
for manual coding and storage.
It should be noted that the above is a general process flow for
producing PET bottled water. Customers may adjust it according to
their specific needs and requirements.
Features
The air duct is set on a scaffold anchored to the ground. On top of
the air duct rests the fan. Ensuring the fans are well-protected,
each air inlet is fitted with an air filter, preventing dust from
infiltrating the bottles.
The bottle is suspended by a hanging bottle plate located in the
air conveyor. Then, the bottle is carried by the wind towards the
bottle puncher.
Other than the plastic and nylon components in the supporting feet
and hanging bottle boards, all parts are fabricated with
premium-grade stainless steel.
Applications
The equipment has a production capacity that ranges from
4000-6000B/H. It has a filling capacity of 350-1000ml and a liquid
level positioning mode. The bottle size allows for a bottle
diameter of 50-100mm and a bottle height between 150-320mm.
Additionally, the equipment is compatible with PVC and PET plastic
bottles. The driving mode features a 3 KW motor triangular belt
drive WPO135 worm reducer (I = 30:1).

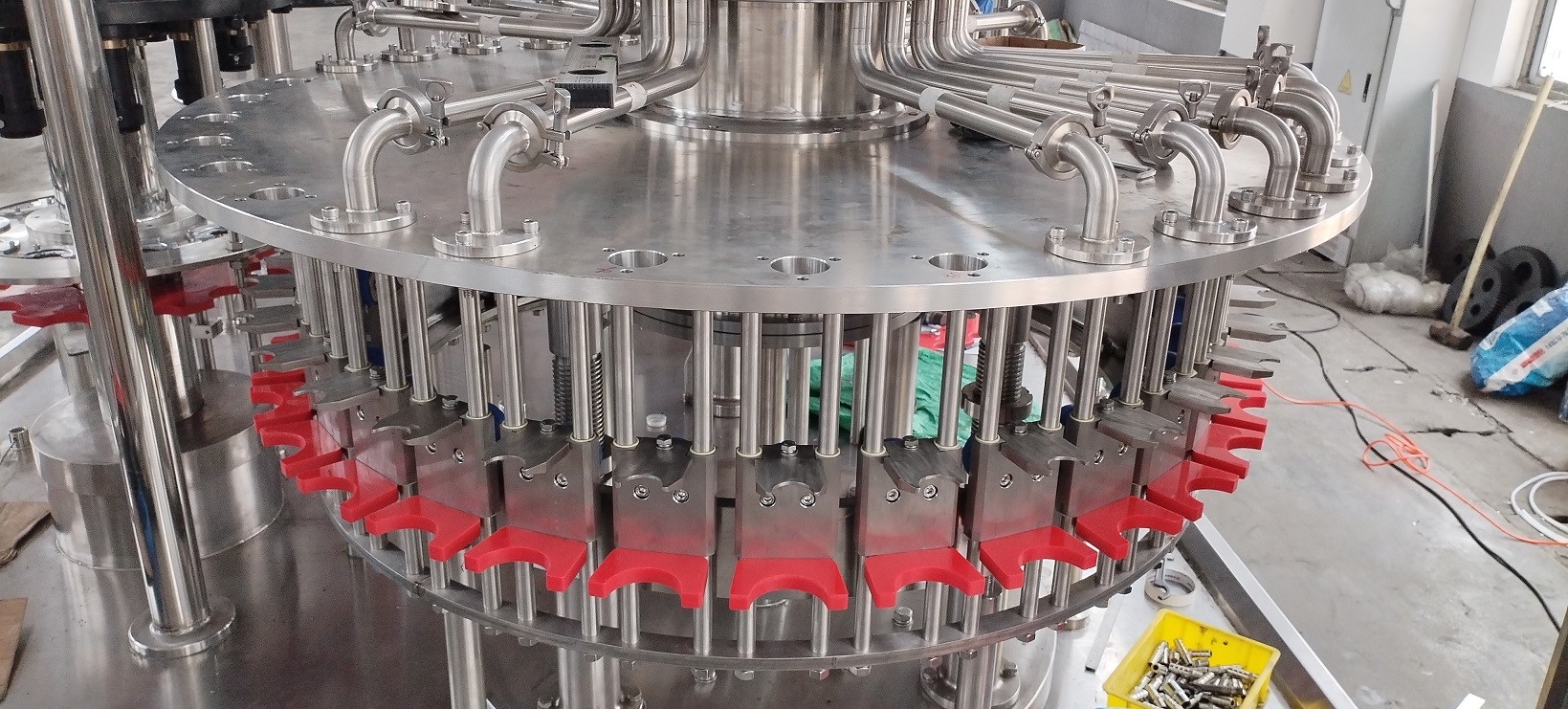

The main structure of the equipment comprises of 18 sets of bottles
and manipulators for flushing. The bottles are equipped with a
rotating seal, internal and external flushing, and backwater
mechanisms. The 18 filling valves add to the equipment's
efficiency.
The equipment is equipped with a set of tighteners for tidying
bottle caps. The cap automatically slips to ensure tightening
without causing damage, keeping it snug in place. Four sets of
bottle dialing safety devices with buzzer alarm that prevent any
mishaps in the filling and capping process. The equipment can only
fill and cap bottles if it detects them.
In addition, the main engine features advanced frequency conversion
speed control technology that ensures reliability and precision
during operation. The equipment is also equipped with imported,
efficient, and clean air filters that ensure air flows to bottle
caps that meet hygienic requirements.
Customization
Our minimum order quantity is just 1 piece and packaging details
include laminated paper cartons. Delivery time is between 50-60
days and our supply ability is guaranteed. With a power of 2.5kW,
our bottle products packaging machine line is perfect for all your
filling and sealing needs. Trust CHIC for high-quality and
efficient packing machines.
Support and Services
The Bottles/Cans Fill and Seal Packing Machine is a new product
that offers a variety of technical support and services to ensure
efficient and effective operation. These include:
- Installation support to ensure proper setup and configuration
- Training for operators and maintenance staff to ensure safe and
effective use of the machine
- Regular maintenance and servicing to keep the machine running
smoothly and prevent downtime
- Technical support for any issues that may arise during operation
- Replacement parts and upgrades to keep the machine up-to-date and
running at peak performance
With these technical support and services, customers can trust that
the Bottles/Cans Fill and Seal Packing Machine will provide a
reliable and efficient solution for their packaging needs.
Packing and Shipping:
Product Packaging for Bottles / Cans Fill And Seal Packing
Machine(NEW):
- Dimensions: 1200mm x 800mm x 1800mm
- Weight: 400kg
- Material: Stainless steel
- Capacity: 30-60 bottles/cans per minute
- Power supply: 220V/380V, 50Hz/60Hz, 1.5kW
Shipping:
- Packaging: Wooden case
- Dimensions: 1300mm x 900mm x 1900mm
- Weight: 450kg
- Shipping method: Sea freight, air freight, or express delivery
- Shipping time: 5-30 days, depending on the shipping method and
destination
FAQ:
What brand is the Fill And Seal Packing Machine?
The brand of this machine is CHIC.
2.
Where is this machine manufactured?
This machine is manufactured in China.
3.
What certifications does this machine have?
This machine is certified with ISO and CE.
4.
What is the minimum order quantity for this machine?
The minimum order quantity for this machine is 1 piece.
5.
What is the delivery time for this machine?
The delivery time for this machine is 50-60 days.
