CHEY-16 lubricating oil, engine oil, brake fluid filling machine

Machine details:

Main features:

1. With PLC + human-computer touch screen control system. The PLC can save the parameters for later use. Operators do not need too much complicated operation.
2. Adopts Mitsubishi servo motor to drive piston pumps, with high speed and high filling accuracy; its also easier for adjusting volumes, only need to input the volume you want to fill from touch screen.
3. The filling nozzles can be with the function of anti-drip, anti-drawing, diving bottom up filling & bubble-kill etc according to the features of different products.
4. For hot filling, we make double jacket tank, which can be heated to keep temperature of products inside. Also with a mixer inside to stir it even.
5. There is a level controller in tank to control the pump to transfer product to the machine tank or stop transferring automatically.

More Details Of Material

Vacuum suction filling head

1.Vacuum suction filling nozzles for anti drops

2.with Drop tray

3.High Filling Accuracy

4.Diving Nozzles are optional for foamy Liquid

5. 304SS contruction

6.High quality O rings and seals inside of the nozzles

ESG Valve

1. Easy disassembly three way connectors

2. ESG long life valve and high performace

3.ESG valve to gurantee the shut off accuracy and more stably

4.Sutiable for thin to viscous liquid

Tools free adjustment system

1. No need tools adjustment for different size of bottles

2. All adjustment parts with measurement and easy for record

3.Filling nozzles are easy for moving right and left for the slider system

4.Adjust the Filling Volume by one touch and operation by touch screen

High quality hose

Adapt world top brand of hose.

hose characteristics: With stand pressure With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying High heat resistance It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions)

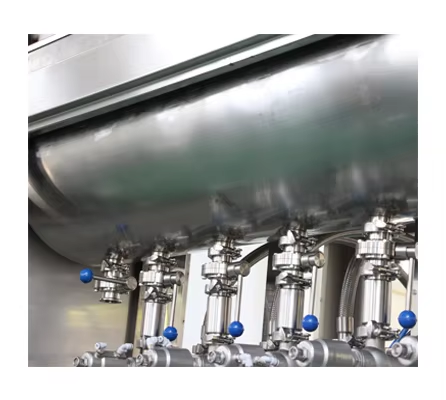

No Dead Corner top tank.

1.The top tank is with round or semi round design no dead corner, more easy Cleaning

2.Double jacket hopper optional

3.Mixing system optional

4.CIP system optional

5. 304SS constuction material, 316SS for option

Xian Yang Chic Machinery CO., LTD is a factories group, we have factories in Shanghai,Beijing,Guangzhou,etc. China big cities, it is very convenience to visit our factories by air or by trains.

We are making packaging machines,cartons and cases fill and seal machines,air compressors, generating sets, packaging materials and machine spare parts etc.

Chic is expert in food and beverage packaging machine lines and related machines and devices.

We have engineer team and after sales team,so,we always can find the best plans in the short time to give out the customers best machine advice and to solve your problems.

In the past years, Chic has exported machines to the oversea markets. Such as South Africa, North America,eastern Asia,European countries,etc. All the machines made under ISO standards and CE rules,some of the machines we have our own patent technology.
