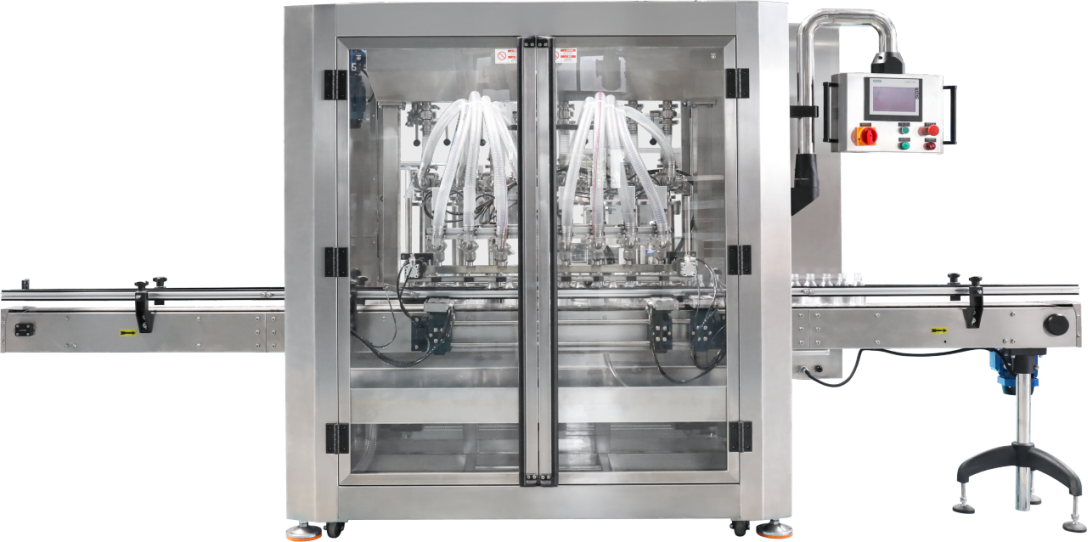

CHZX-6/8/10/12 Linear bottles filling line liquid water
pharmaceutical automatic filling bottle machines
The fully automatic piston filling machine adopts the principle of
plunger quantitative filling. Bottle feeding, positioning, filling
and bottle discharging are all automatically controlled by PLC,
which meets GMP standards. It is suitable for liquid filling of
medicine, food, daily chemicals, pesticides and fine chemicals.
Features
1.Touch screen operation interface
2. 4-pin up and down movement filling, effectively preventing foam
generation
3. Filling accuracy can reach ±1%

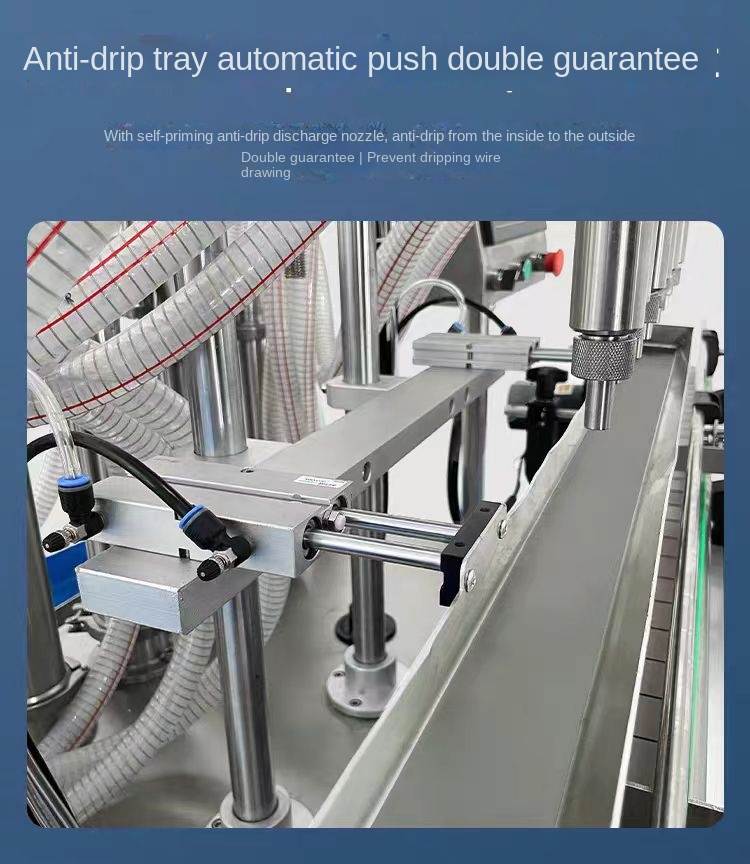

4.The filling cylinder is hard chrome treated and ground, and the
unique filling valve design does not drip
5.With no bottle, no canning function
6.Different positioning devices are designed according to the
actual situation of the bottle
7. The equipment is easy to clean, can be folded and assembled
without tools, and can also be cleaned online or sterilized at high
temperature
8. PLC can be programmable and uses Japan Mitsubishi
9.Pneumatic components use Taiwan AirTac
10. The equipment shell material is SUS 304# stainless steel
11.Equipped with a glass protective cover that meets hygiene and
safety standards
Note: The filling range and speed can be designed with different
filling heads according to user needs.
Technical Parameters
| Filling head | 6 |
| Filling capacity(ML) | 500-2000ml |
| Speed(BPM) | 5-60 bottle／min |
| Voltage(VAC) | 380V |
| Power(KW) | 2.0 |
| Air consumption(MIN) | 4KGS×30LITER |
| Machine Size(MM) | 3000x1300x2100 |
| Weight(KG) | 450 |
Machine details:
Machine line samples:
Applications:
Usually work with machines:
1. Bottles sorting and feeding machine
Suitable for automatic transmission of round bottles, such as the
conveyor belt connected to labeling machine, filling machine,
capping machine, automatic bottle delivery, improve efficiency; It
can be applied to the middle connection of the assembly line as a
buffer platform to shorten the length of the conveyor belt.
◆ The range of applicable bottles can be adjusted freely, the
conveying speed of bottles can be 30~50 bottles/min, the speed can
be stepless adjustment, convenient production arrangement.
Features
◆ Product delivery and collection, sorting, reduce labor intensity,
improve efficiency.
◆ The structure is relatively simple, stable and reliable.
Working Process
◆ The turntable of the bottle unscrambling machine drives the
product to rotate automatically, the product is close to the edge
of the turntable under the fluctuation of the bottle unscrambling
plate, and the product is exported orderly along the bottle
unscrambling groove of the bottle unscrambling machine.
Technical Parameters
| Rotary Diameter | About 800mm (can be customized) |
| Size | 1000*900*1300mm |
| Voltage | 220V/50Hz |
| Total Power | 0.37KW |
| Weight | About 65KG |
| Suitable Scope | Diameter:φ20mm～φ100mm Height:20mm～150mm (can be customized)
|
-Automatic capping machine:
Description
Automatic in-line capping machine is based on the international
advanced models improved design, capping speed, high qualified
rate, easy to operate. It can be used to screw caps of different
bottle shapes in food, pharmaceutical, daily chemical, pesticide,
cosmetics and other industries. The machine has high degree of
automation, good stability and convenient adjustment. (If it is
equipped with a capping machine, it can be automatically capped.)
It can be selected according to actual needs.
Technical Parameters
| Cap diameter(mm) | 20-60(can be customized) |
| Speed | 20-30 PCS |
| Total Power | 2KW |
| Size | 3000*900*1600MM |
| Voltage | 220V 50HZ |
| Weight(kg) | 250 |
