    48g 500ml Vertical Flow Pack Machine Form Fill And Seal Machines

    Ask Lasest Price
    Brand Name : CHIC
    Certification : CE ,ISO
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10 piece per month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    48g 500ml Vertical Flow Pack Machine Form Fill And Seal Machines

    48g Pistachio Packaging Machine Nuts Chips Rice Sachet VFFS Packing Machine


    Application:

    Suitable for puffed food, snack, peanut, melon, seed, rice, salt, seeds, monosodium glutamate, white sugar, beans, corn, biscuit, screw, hardware, nail, nut and bolts and other granule, soliad material packaging


    Specifications:


    ITME

    TECHNICAL INFORMATION

    MODEL

    DC-320A

    MEASURING TYPE

    AUTOMATIC CUP MEASURING

    FILLING RANG

    50-500ML

    PACKAGING SPEED

    30-80BAGS/MIN

    BAG WIDTH

    50-150MM

    BAG LENGTH

    40-270MM

    FILM WIDTH

    MAX.320MM

    ROLL DIAMETER

    MAX.300

    BAG PULLING TYPE

    SERVO MOTOR PULLING

    POWER

    220V,50/60HZ/1.2KW

    MACHINE SIZE

    1100*755*1540MM

    MACHINE WEIGHT

    350KG

    BAG TYPE

    THREE/FOUR SIDES SEALING BAG, STANDARD MIDDLE SEALIN BAG. GUSSET BAG


    OPTIONAL DEVICE

    DATE DEVICE/ AIR FLUSHING DEVICE/PUNCHING DEVICE


    Machine details:


    1. Touch Screen

    Size: 7" touch screen and colorful

    Brand: Weinview

    Original: Taiwan

    Easy Control bag length of each bag, high sensitive electro-optical sensor system is provide to the realize automatic a lignment on the packing film.Six kind of language, Chinese, English, Russia, France, Korean, Arabic


    2. Bag Making Device

    Name : Bag Former
    Material : Food Grade 304 Stainless Steel

    Size : According Client Need Size To Customized
    The machine can make standard middle sealing bag,3/4 sides sealing bag or gusset bag type.

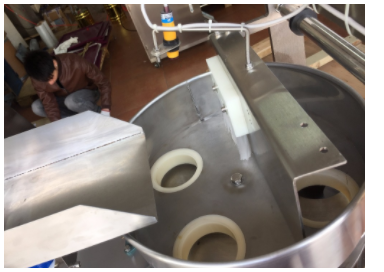

    3. Mesauring Parts

    Name : Cup Metering Device
    Material : Food Grade 304SUS+ plastic/ Stainless Steel
    Szie : 10-500ml
    Using volume conversion principle technology, simple and small error range

    4 . Date Printing Device

    Application : It is suitable for various kind of the sanding filing packing machine for making bags. Which have the air source by themselves. And type writing code matching for the sticking the label's machine, it is small in volume and easy to install, widely used for printing date of production, batch number and etc. in the industries of foodstuff, beverage, pharmaceuticals and so on.

    5. Electronic Eyes

    Brand: Ortai
    Original: China
    *High sensitive optical lextric color mark tracking system and digital input cutting position,which makes the sealing and cutting more accurate.

    6. Electronic Box

    Name: PLC controller
    Brand: Siemens
    Original: Germany
    * Used imported electrical brands is for system stability and extending the life of the machine

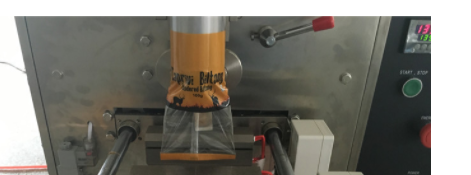

    Products samples:


    48g 500ml Vertical Flow Pack Machine Form Fill And Seal Machines48g 500ml Vertical Flow Pack Machine Form Fill And Seal Machines

    WHAT IS OUR ADVANTAGES:


    1. Free consultation service before, during, and after sales;

    2. Free project planning and design services;

    3. Free debugging of equipment until everything is functional;

    4. Free management of equipments' long distance shipping;

    5. Free training of equipment maintenance and operating personally;

    6. Free new production techniques and formulas;

    7. Provide 1 year complete warrantee and lifetime maintenance service


    NOT : one set machine only have one bag former ,if you have different size bag , have to add the anther size bag former .


    FAQ


    Q1: How to find a Packing machine suitable for my product?

    Tell us about your product details and packing requirements.

    1. What kind of product you would like to pack?

    2. The bag/sachet/pouch size of you need for the product packing(the length and width).

    3. The weigh of each pack you need.

    4. You requirement for the machines and the bag style.

    Q2: Is engineer available to serve oversea?

    Yes, but the travel fee is responsible by you.

    In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

    Q3. How can we make sure about the machine quality after placing the order?

    Before delivery, we will send you the pictures and videos for you to check the machine quality.

    And also you can arrange for quality checking by yourself or by your contacts in China.

    Q4. We are afraid you won't send us the machine after we send you the money?

    We have our business license and certificate. And it is available for us to use Trade assurance service, guarantee your money and guarantee your machine's on-time delivery and machine quality.

    Q5. Can you explain me the whole transaction process ?

    1. Sign the Contact

    2. Arrange 30% deposit to our factory

    3. Factory arrange production

    4. Testing & detecting the machine before shipping

    5. Inspected by customer or third agency through online or site test.

    6. Arrange the balance payment before shipment.

    Q6: Will you provides the delivery service?

    A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
