Description:
Automatic juice aseptic standards carton filling machine
PLC control Small size /small capacity milk /yoghurt /fruit juice
production line,
complete 200L and 500L/H Small scale milk /yoghurt /fruit juice
processing line,
Multifunctional small scale milk yoghurt fruit juice making machine
,
Advanced Multifunctional small scale milk yoghurt fruit juice
production line/processing line ,
Full automatic one-piece small scale milk yoghurt fruit juice
plant,
Factory one-piece small scale milk yoghurt fruit juice plant
/equipment /machine for sale ,
Bottle filling /Cup filling /bag filling one-piece small scale milk
yoghurt fruit juice production line for sale, Aseptic carton
filling one-piece small size dairy juice production line for sale ,
Application
Filling fruit and vegetable juice, vegetable protein, tea beverage,
alcohol and other non-acidic liquid food beverage.

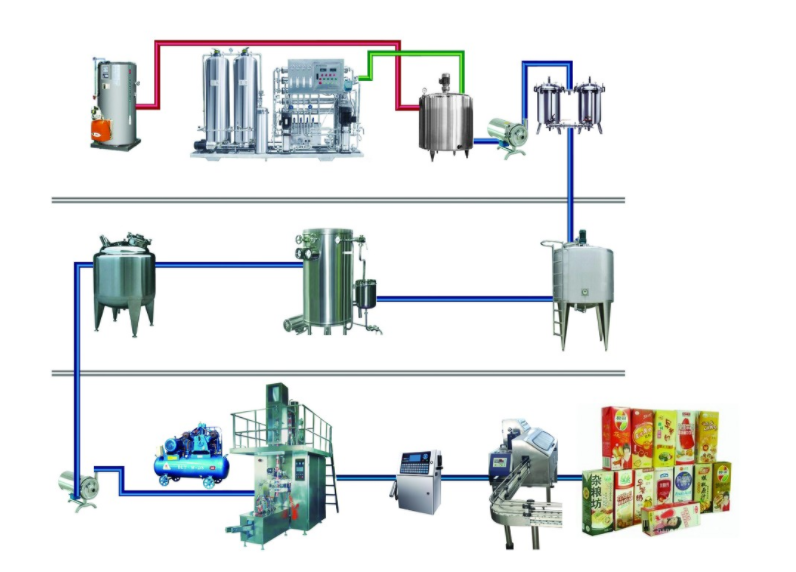

Small size /small capacity milk /yogurt /fruit juice production
line adopts the most advanced technology, including a combination
of 200L and 500 l/H, filling machine and fermentation tank and
freezers, the 200L and 500 l/H unit, including water treatment,
mixing tank, fermentation tank, canning, plate sterilizer,
homogenizer, boiler, air compressor, pipelines, valves, etc.Need
1-2 people, the operation of the production needs only a 20 foot
container transportation.Operation and maintenance is convenient,
suitable for small production production of pasteurized milk,
yogurt and fruit juice.All electrical appliances and accessories
with international famous brand products, production line for high
quality stainless steel structure.
Package Form
Paper aluminum plastic composite materials, brick type, prism paper
box packaging.

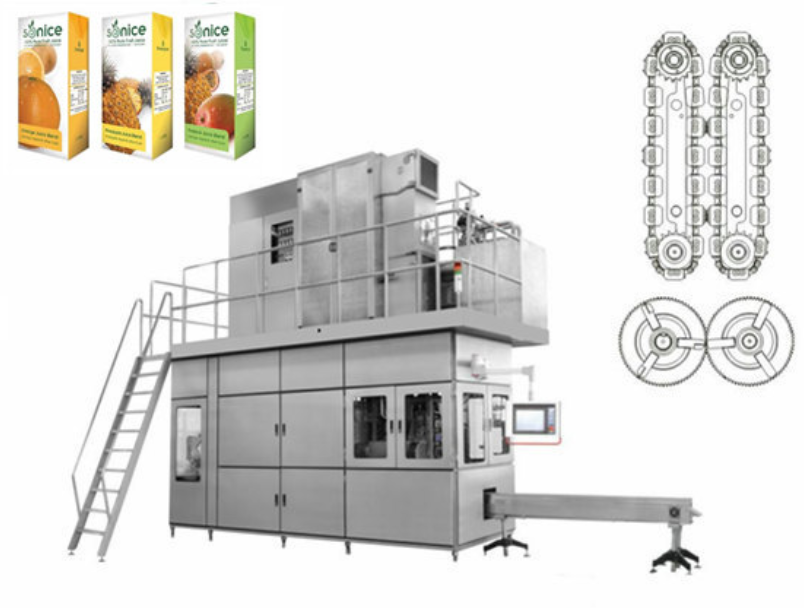

Advatage of the aseptic brick carton filling packaging machine:
This machine is used for packing the UHT ( Ultra-High Temperature
instantaneous sterilization) Ultra - high temperature instantaneous
sterilization) processed liquid food, including liquid milk, and
other non-gas beverage, juice, coffee, plant protein drinks, tea
drinks ,wine etc. All products hold a shelf life of 6 months.
Main Technical Parameters :
| Productivity | 2000BPH for 500-1000ml |
| Package shape | Brick based shaped ,brick slim shaped |
| Packing material | PE/PAPER/PE/AL/PE/PE 6layer aseptic packaging material roll |
| Electric power | 24kw (mechanical transmission:4kw,electric heating power:30kw) |
| Rated voltage | 220V/380V |
| Power frequency | 50Hz/60Hz |
| Compressed air | 0.4-0.6Mpa,1.0m3/min |
| Technological process | Feed paper---print date---sterilize---filling---shaping |
| Operation model | PLC control,man-machine interface operation |
| Shelf life | In 20-30℃,juice 12month ,milk 6 month |
| Outside measurement | L x W x H=4500x1600x4000(mm) |
| Production Area | 100-140sq.m |
| Production personal | 1-2per shift |
| Final product | Drinking Milk ,Yoghurt, Juice |
Features of the our aseptic brick carton filling machine:
- 1. Equipped with both H2O2 & UV sterilizing, comply with firm's
safety management requirement.
- 2. The system will finish all the process automatically: feeding,
dosing,filling, sealing, date printing and finish product
conveying. It has high accurate weighting and high efficiency
without broke.
- 3. With PLC pneumatic control system and quality touch screen to
compose the drive control center which maximize the whole machine's
control precision, reliability and intelligent level.
- 4. Use intelligent tempreture controller to have accurate
tempreture, which ensures the artistic and neat seal.
- 5. the unique mechanical structure can adapt tp a variety of
packaging materials, which can significantly save the cost of
consumables.
