Capacity | 500 case/hour |
Air compress | p≥0.8Mpa, normal≥1M3 |
Power | 5.5kw |
Originally material requirement | according our standing |
Weight | 2000kg |
Power pressure | AC 3P 380~400V, 50HZ;control power AC22 |
Technical parameter:
Suitable for carton: L200 ~ 450 * W150 ~ 400 * H100 ~ 400mm
Mesa height: Min 600mm, Max 720mm
Sealing speed: 10~12 box / min
Use power: 200W, 220V/50HZ
Using air source: 0.6-0.7MPa
Suitable adhesive tape: W48 ~ 60 ~ 75mm * L1000 code
Machine weight: net weight 400Kg
Mechanical size: L2000 * W1900 * H1450mm

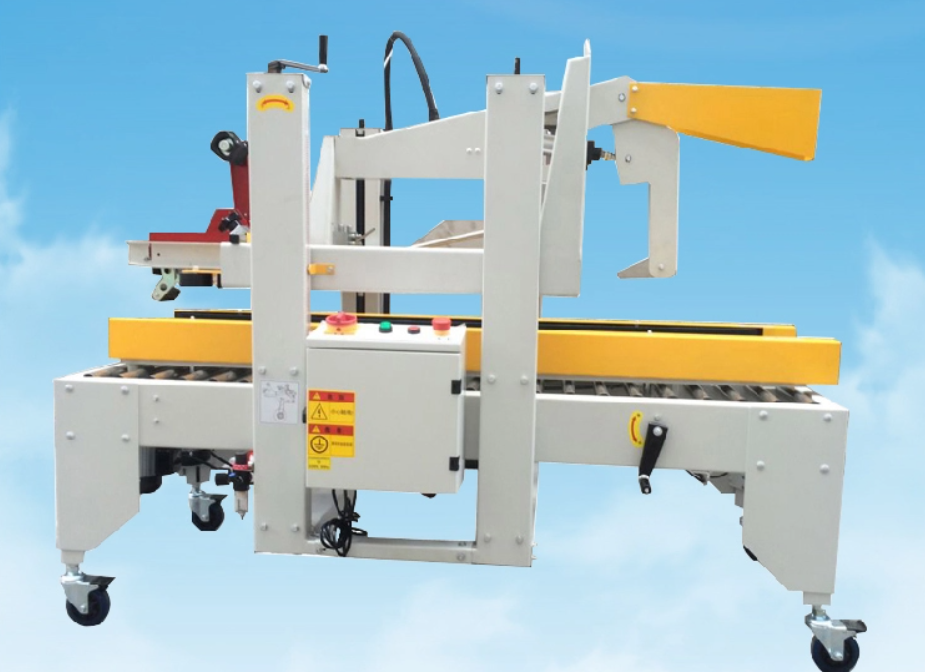

Carton folding and sealing machine
This series is based on stand-alone models, up and down, “a” type
automatic sealing packaging
Transmission design approach, using both sides of the drive belt
Automatic carton packaging operations up and down affixed with
sealing
Specifications for carton, manual adjustment (1 minute) to be
completed
Packaging materials, cardboard boxes can be used in this series
Economic, labor-saving, beautiful, lightweight models
Mechanical properties of precision and durable, stable operation
and long life
Assurance than an artificial stickers with beautiful, fast, high
efficiency.
Main configuration: VTV motor seizure Taiwan Theological electric
switches, Japan NSK Bearings, Xiangrong bearing dual brake casters
FAQ:
Q1:What’s the MOQ of the machines?
The MOQ is 1 set.
Q2:What’s the carton material does the machine use?
3-layer or 5-layer corrugated cartons.
Q3:Is the machine Full-automatic or Semi-automatic?
There’ re both full-automatic and semi-automatic.
Q4:Which model carton sealing machine is suit for our requirement?
Please send us your carton size(carton drawing with dimension on it
is rather helpful),then we can recommend the right machine for you.
Q5:Is the carton sealing machine can be connected with production line?
Yes, it can be connected with the production line or single
operating. Q6:What’s the warranty of the machine?
It’s 1 year warranty except the consuming spare parts Lifetime
maintenance.
Q7:Can you provide customization service for us if we have the special
requirements?
Sure, we can provide customization service for you.
Q8:What’s the added value service of your machine?
We provide free training for your operator and machine maintenance
at our factory in China.Or provide you the technical video for your
reference.
