Product Application

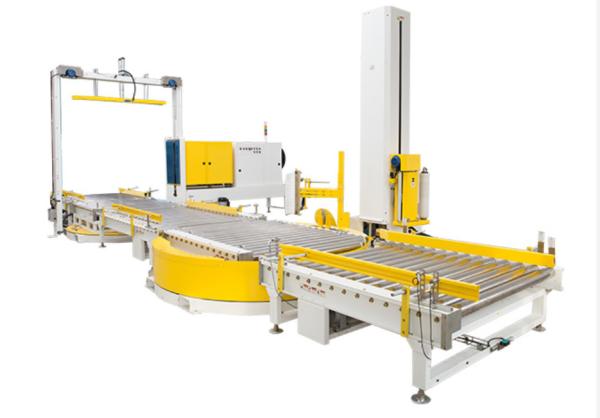

T1800FZ-PL Automatic Online turntable pallet stretch wrapping
machine are used to wrap stretch film around a loaded pallet. Film
provides extra support while the products are being transported &
storage to protect them from tip, spill from being damaged.
Additionally, wrapper loads can easily be separated and identified.
Features
• Open door film carriage
• Limit built-in
• 1800mm wrapping height
• 2000kgs loading
• Spring break stretch
• Home position: the turntable always stops at the same position
• Speed control on turntable
• Choose between 1 & 9 top and bottom wraps with re-enforce wrap
• Up & down or up only wrap cycle
• Semi auto and manual wrap options
• Adjustable pallet height photo sensor
• Secure Top Sheet Function
• Lockable control panel
• Adjustable tension with quick release
• Soft start and stop
• Machine can be paused during cycle
• Magnetic brake holds turntable still during loading/unloading
• Audible warning when running a cycle
Specifications:
| Model | T1800FZ-PL |
| Wrapping size | (800-1100)*(800-1200)mm |
| Wrapping height | 800-1800/2400mm |
| Packing efficiency | 30-50pallets/hour |
| Turntable size | 1800mm |
| Turntable loading | 2000kg |
| Turntable speed | 0-12rpm |
| Voltage | 220V/50HZ |
| Average power consumption | 1.5kw |
| Machine size | L2820*W1800*H3200mm |
| Weight | 1000kg |
Machine details:
Max Pre-stretch 350%
Adjustable tension with quick release
Installation and adjustment

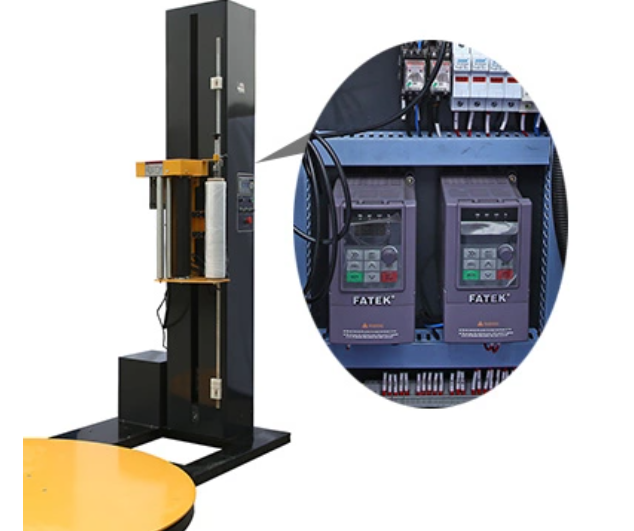

Independent PLC Inverter Control
Frequency conversion motor has less abrasion and stable packaging
After the equipments are arrived at the customer’s site, the
customers is responsible for unpacking and arranging the equipment
according to the placement drawing; and do under our install-adjust
technicians’ guidance.
According to requirement of water, electricity, air and steam
consumption and the demands of quality level and pipeline, the User
should connect the wire, cable and pipe of water, air and steam to
the special position ordered in the installation area of production
line ahead of time. Other relevant matching equipment and project
should be finished before we adjust our equipment.
We’ll bring a suit of portable installation and adjustment tools
ourselves during the period of installing and adjusting, the other
instruments we need should be furnished by the customer for free
including oxygen, acetylene angry, argon, etc. needed in the
installation and adjustment site.
The customer should dispatch the capable person to accept training
in the installing site.
Quality assurance
We guarantee the goods offered are brand-new, unused, with latest
design and suitable material made, and we guarantee the
specification of the equipments is consonance with the contract.
We are responsible for the fault and damage of the production line
caused by our design, technology, manufacture, installation,
adjustment and material defect etc that all belong to our
responsibility.
Maintenance
Offer 12 months maintenance period to the problem that caused by
our design, manufacture and the material quality, and offer the
relevant parts and effective service for free for above reason. We
will offer a widely and favorable technical support, after service
all the time after guarantee period.
