Horizontal Multi Packaging Machine Wrapping Flow Pack Vegetables

    Buy cheap Horizontal Multi Packaging Machine Wrapping Flow Pack Vegetables from wholesalers

    Buy cheap Horizontal Multi Packaging Machine Wrapping Flow Pack Vegetables from wholesalers
    • Buy cheap Horizontal Multi Packaging Machine Wrapping Flow Pack Vegetables from wholesalers

    Horizontal Multi Packaging Machine Wrapping Flow Pack Vegetables

    Ask Lasest Price
    Brand Name : CHIC
    Model Number : 600
    Certification : CE ,ISO
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10 piece per month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

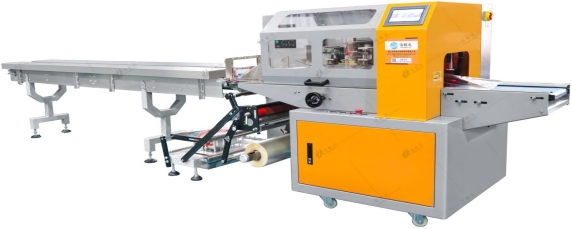

    Horizontal Multi Packaging Machine Wrapping Flow Pack Vegetables

    600 Horizontal Wrapping Flow Pack Vegetables Multi Packaging Machine


    Requirements and analysis of packaging products proposed by customers:


    1. Packaging products: leafy vegetables, rhizomes (cucumber, carrot, eggplant, yam, lotus root, celery, corn, etc.)

    2. Recommended model: HMD-600X vegetable packaging machine+punch (24 holes).

    3. Maximum film width: 600mm, maximum bag width: 280mm, and film width of different sizes shall be changed according to different sizes of products.

    4. Packaging materials: anti-fogging film, composite film, single-layer OPP, and other heat sealing packaging materials.

    5. Optional accessories: weighing and labeling all-in-one machine, finished product turntable, laser printing, drilling machine, ink wheel coding machine, etc,

    6. Packaging benefits: it can prevent customers from picking, throwing and damaging. It has the effect of fresh-keeping. The packaged products are clean and sanitary in appearance


    Features of HMD-600 fruit packaging machine:


    1. The optical fiber sensor can automatically identify the length of the material, and the length of the material does not need to be fixed (variable length);

    2. It can automatically detect whether there is material, stop the machine when there is no material, and prevent the bag from cutting;

    3. Cylinder type cutter adopts servo control, with higher controllability, more accuracy, simple operation, convenient maintenance and price

    Affordable;

    4. Compact structure, stable performance, quiet and stable operation;

    5. Touch type human-computer interface is adopted, and the parameter setting is convenient and quick for fault self diagnosis, and the fault display is clear at a glance;

    6. High sensitivity photoelectric eye color mark tracking makes the sealing and cutting position more accurate;

    7. Independent PID control of temperature, better suitable for various material coatings;

    8. Positioning stop function, no knife sticking, no film wasting;

    9. The rotation system is simple, more reliable, and more convenient for maintenance.


    Specification:


    TypeHMD-600X
    Film width< 600mm
    Bag LengthNu-limited
    Bag width100-280mm
    Product high≦150mm
    Film roll diameterMax. 320mm
    Packing speed20-80bag/min
    Power220V,50/60HZ,3.6KVA
    Machine size(L)4340×(W)960×(H)1350
    Gross weight800Kg

    Optional accessories:

    1: Date Coder

    2: Touchable Screen

    3: Automatic Punching Device
    4: Alternative sealing patterns and notch

    5: Auto labeling device 6:Deoxidizer chute device
    7: Gas flushing device


    Main machine parts:


    Machine details:


    Anti-wear pulley

    Prevent the leaves of vegetables from being abraded during the feeding process to speed up the decay rate, and increase the height of the feeding plates on both sides, so as to facilitate the feeding of bulk vegetables without scattering, and make the packaging more beautiful.

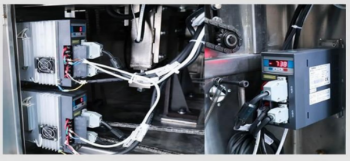

    -Three servomotors


    Precise identification of material position

    High performance speed

    Stable operation

    Low noise

    -Servo control cutter end


    The cutter height can be adjusted according to the height of various vegetables (for example, it can be fixed at 10cm or 13cm). The servo control is more adjustable and accurate

    -Anti break film device


    An additional motor drives the white rod to automatically pull the film, which makes the film pulling speed faster and the overall packaging system more stable.



    1. No jamming conveyor belt

    2. Roll film drilling fresh-keeping device

    3. Automatic product length identification device

    4. Horizontal and vertical sealing thermostatic control device (applicable to various materials)

    5. Chinese &English displaying touch screen

    6. Height adjustable cutter

    7. Finished output


    Samples:



    Pre-Sale Service:


    We will according your product feature, weight of each bag, and shape of bag make a quotation for your. Then more details we need communication sunch as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.


    After-Sale Service:


    Warranty: 1 Year excep wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc)Most of components are free-replacement (PLC,Servo controller,Servo motor,Touch screen,cylinder) . Machine delivery will with a tool box, there have some parts is free.


    Kindly reminder:

    Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.

    1. Product details

    2. Bag width,bag length

    3. Bag shape

    4. Packing film material

    5. Machine frame

    FAQ


    Q1: How to find a Packing machine suitable for my product?


    Tell us about your product details and packing requirements.

    1. What kind of product you would like to pack?

    2. The bag/sachet/pouch size of you need for the product packing(the length and width).

    3. The weigh of each pack you need.

    4. You requirement for the machines and the bag style.


    Q2: Is engineer available to serve oversea?


    Yes, but the travel fee is responsible by you.

    In order to save your cost, we will send you a video of full details machine installation and assist you till the end.


    Q3. How can we make sure about the machine quality after placing the order?


    Before delivery, we will send you the pictures and videos for you to check the machine quality.

    And also you can arrange for quality checking by yourself or by your contacts in China.


    Q4. We are afraid you won't send us the machine after we send you the money?


    We have our business license and certificate. And it is available for us to use Trade assurance service, guarantee your money and guarantee your machine's on-time delivery and machine quality.


    Q5. Can you explain me the whole transaction process ?


    1.Sign the Contact

    2.Arrange 30% deposit to our factory

    3.Factory arrange production

    4.Testing & detecting the machine before shipping

    5.Inspected by customer or third agency through online or site test.

    6.Arrange the balance payment before shipment.


    Q6: Will you provides the delivery service?


    A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
