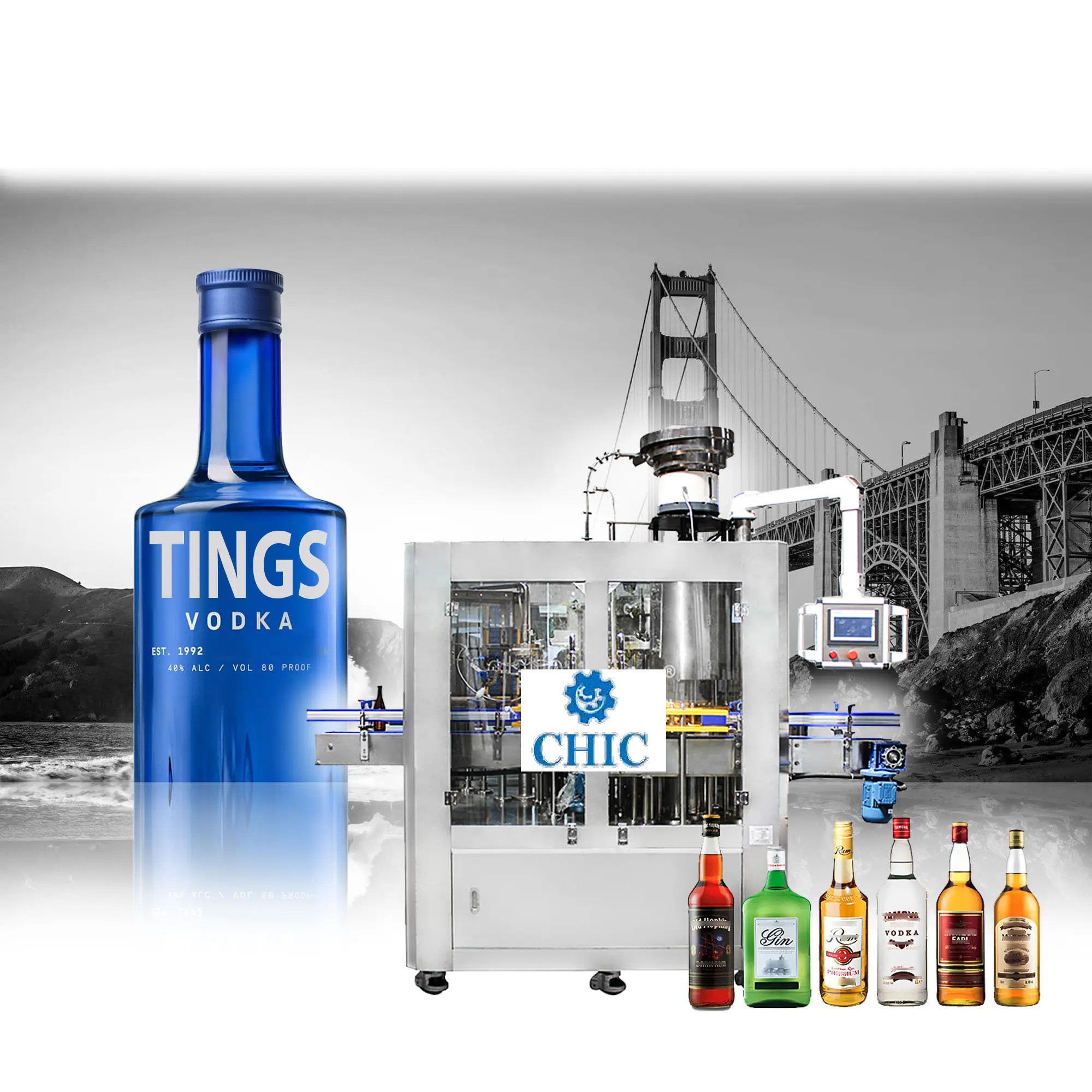

DGCF 24/24/8 Washing, filling, capping 3-in-1 machine
The three-in-one filling machine combines the functions of
flushing, filling and sealing on one machine. It is a new type of
equipment developed by ourselves with advanced technology from
abroad. It combines many years of practical experience in the
production of the three-in-one machine for flushing, filling and
sealing, and repeatedly absorbs the opinions of users. It meets the
requirements of customers for different bottle filling on one
machine, and uses the hanging type bottleneck manipulator to make
the bottle type replacement convenient and fast. It is mainly used
for disinfection, washing, filling and sealing. It is used for
filling pure water, mineral water and normal temperature fruit
juice. It can be selected by users with different needs.
| Model | DGCF16/12/6 | DGCF18/18/6 | DGCF24/24/8 | DGCF32/32/10 | DGCF40/40/12 | | Production Capacity(500ml)(b/h) | 2000-4000 | 4000-6000 | 6000-8000 | 8000-12000 | 8000-12000 | | Filling Precision | <±5mm (Liquid level) | | Filling Pressure(MPa) | <0.4 | | Polyester Bottle Standard(mm) | Bottle Diameter: φ 40-φ80
Bottle Height: 130-250 | Bottle Diameter: φ50-φ100
Bottle Height: 150-320 | | Suitable Cap Shape | Plastic Screw Cap | | Water Pressure of Washing Bottle(MPa) | 0.18-0.25 | | Water Consumption for Water Bottle(kg/h) | 1300 | 2000 | 2500 | 3000 | 3000 | | Spraying Postion | 5 | 5 | 6 | 12 | 12 | | Dripping Bottle Position | 2.5 | 3 | 3.5 | 7 | 7 | | Gas Source Pressure(MPa) | 0.4 | | Gas Consumption(m3/min) | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | | Total Power(kw) | 5.03 | 5.03 | 6.57 | 8.07 | 8.07 | | Total Weight(kg) | 2000 | 3000 | 4000 | 5000 | 5000 | | Dimenson(L*W*H)(mm) | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3600*2200*2600 | 3600*2200*2600 |
|
Water treatment system
The water treatment equipment includes multiple-filter-medium
(JDL-6), sand-bar filter (GL series), fine filter (JML series),
fiber active carbon (HML series), sodium-ion exchange (SNJ-3),
hollow fiber super-filter (CL series), ultraviolet sterilizer (ZM
series), ozonator and etc. Its treatment capacity is 2-30 tons per
hour. It can effectively get rid of muddy organic matter, iron,
manganese and oxide. Filter suspended substance, colloid, remained
oxygen of microorganism and some of heavy metal ion in the water.
Reduce the hardness of the water to make all specifications of the
water quality fully meet the state fresh water standards of fresh
drink water, even that of mineral water.
Bottle Blowing Machine
CM-8Y heat-resistant semi-automatic bottle blow molding machine is
suitable for producing any shapes of PET containers and volume is
from 10-2000ml. 1t is widely used to produce mineral water bottles,
carbonated beverage bottles, cosmetic bottles, oil bottles etc.
Adopting double crank connecting bar clamping and clamping mold is
stable and fast. Adopt for infra-red rotary oven and heated
equally. The air system has been divided into two parts: pneumatic
action part and bottle blow part to meet the different requirements
for the pressure of action and blow. It can provide sufficient and
steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and different parts of
refueling system. The machine can be operated in the step-by-step
mode and the semi-auto mode. The machine is small with low
investment, it's easy and safe to be operated by one person.
The three-in-one filling machine combines the functions of
flushing, filling and sealing on one machine. It is a new type of
equipment developed by ourselves with advanced technology from
abroad. It combines many years of practical experience in the
production of the three-in-one machine for flushing, filling and
sealing, and repeatedly absorbs the opinions of users. It meets the
requirements of customers for different bottle filling on one
machine, and uses the hanging type bottleneck manipulator to make
the bottle type replacement convenient and fast. It is mainly used
for disinfection, washing, filling and sealing. It is used for
filling pure water, mineral water and normal temperature fruit
juice. It can be selected by users with different needs.
Labeling Machine
This machine applies to single side, double and facade labeling of
all kinds of quadrate & flat bottles in pharmacy, food beverage,
daily chemical industry etc., The machine adopts PLC process
control, photo-electricity bottle checking and label delivery, it
composes of high production efficiency with labeling precise and
reliable, operation convenience, and wide adaptive scope etc.
Start-up system: depend on 3-5 pole motor driving, electronic
control speed, full automatic transmission device, electricity
source place combine with high precise density steel star gear,
including automatic suited machinery safety device.
application area
It is applied to the production of medicine, personal care
products, tobacco, food and beverage packaging, wine, dairy
products, clothing labels, leather, electronic components, chemical
building materials, metal products, product labels and other
fields, as well as the effective date, batch number, shift number,
enterprise name, trademark and logo.
Applicable materials:
Applicable to marking of various materials, such as paper
packaging, leather cloth, plexiglass, plastic packaging, resin
plastic materials, bamboo and wood products, coated metal, metal,
glass, ceramics, etc.
Hot shrinkable packaging machine
Specially designed and manufactured for the high-speed packing
requirements of drinks (pure water, beverage, fruit juice, and milk
product). During the product forward conveying process, it can
automatically group the product into package, so as to save time
and enhance packing efficiency.
Touch-screen operating panel with user-friendly interface and
convenient parameter setup, absolutely an easy-to-operate
machine.The ideal model of middle-speed heat-shrinking packager in
the domestic market.
